PS111
AQ-PST-1
If you’re looking for a reliable dual input power supply, look no further than the PST-1 110/240V AC Female Spade Connectors.
With a power factor of at least 0.9 and a power efficiency of 87% or greater, this highly durable power supply is a great choice for any environment where water may pose a hazard to traditional equipment.
The PST-1 is also built for durability against over voltages, over currents, and over temperatures.
Quick Links
| Type: | Regulated switching mode power supply (≤10A, 13V DC) |
| Waterproof: | Yes – IPx5 |
| Input Voltage: | 100-240V AC (power input auto sensing/switching) |
| Input Frequency: | 50/60 Hz |
| Efficiency: | ≥87% |
| Power Consumption: | ≤0.5W (at 240V AC) |
| Power Factor: | ≥0.9 (at full load) |
| Short Circuit Protection: | Continuous |
| Output Plug: | 2x female spade connectors (+13V DC (red), Neg (black)) |
| Output Voltage: | 13V DC regulated |
| Output Current: | 5A |
| Ripple & Noise: | 260mV (max) |
| Voltage Accuracy: | ±5% |
| Line Regulation: | ±5% |
| Load Regulation | ±5% |
| Operating Temperature: | -20°C – 70°C |
| Storage Temperature: | -20°C – 85°C |

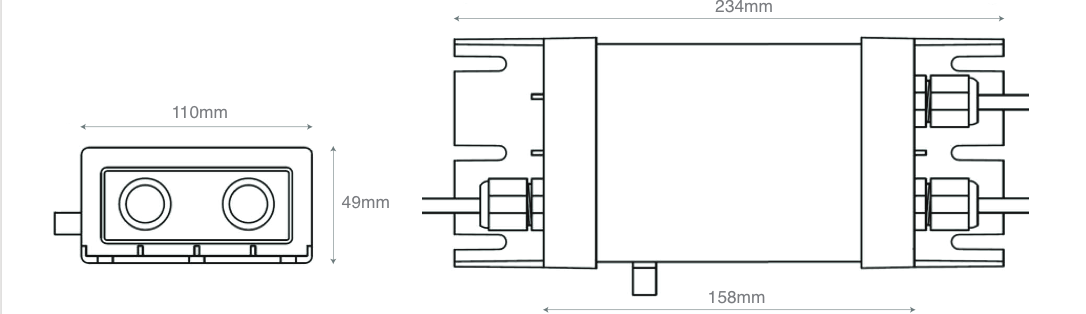

| Dimensions: | 49 x 234 x 110 mm |
| Certifications: | UL1563 class2, UL1310, CSA, CE |
| Additional Features: | Over Voltage Protection, Over Current Protection |
| Over Temperature Protection |
Yes, it will. Look at the picture of this power supply and verify that your current one has the same connectors. The only difference is that the new power supply will be smaller in size.
This product includes 1 power supply.
